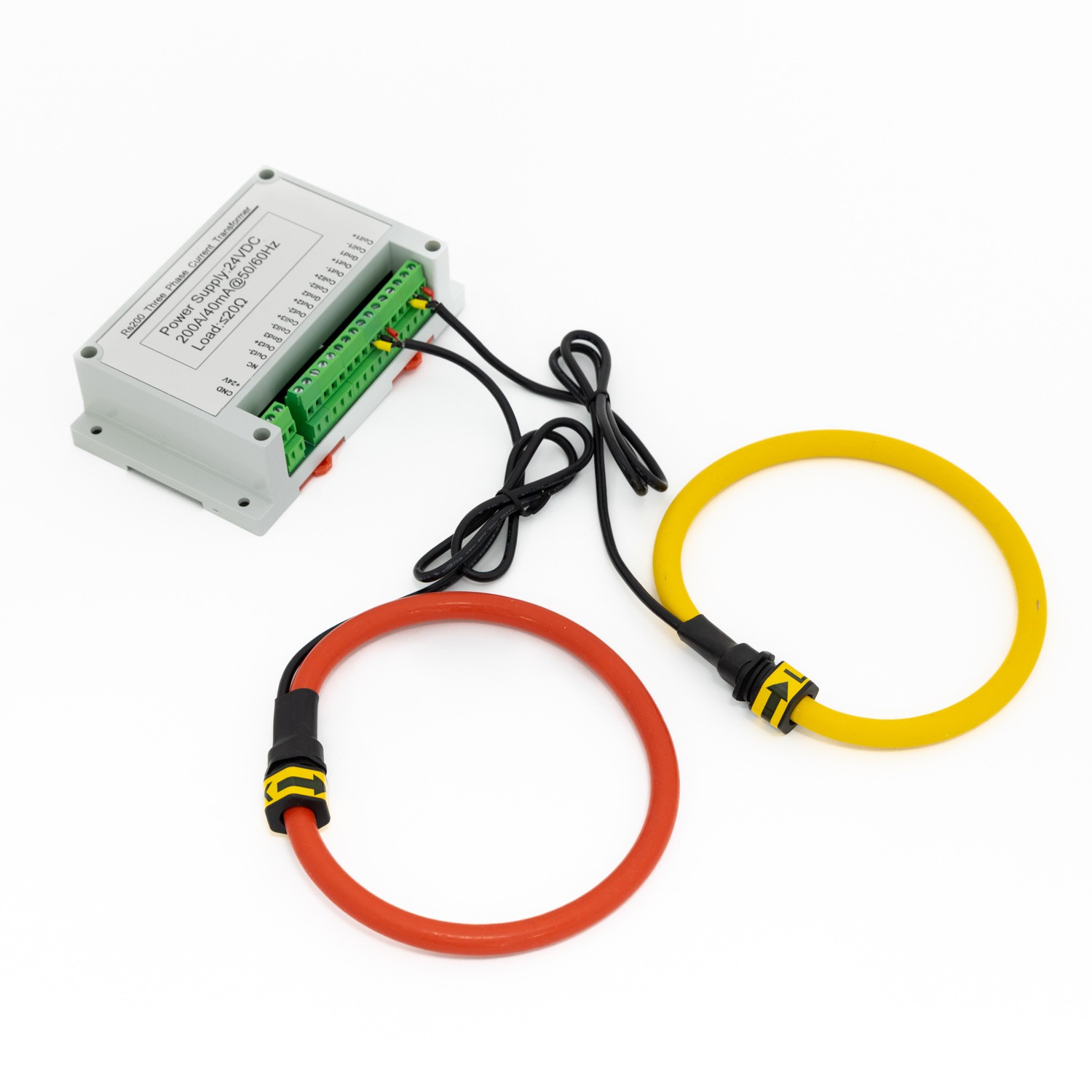

Two Phase Rogowski Coil 200A 40mA UL Listed
RS200 Rogowski coil (200A/40mAac) is based on the industrial demand and design for high accuracy, high safety, low power consumption of the transmitter.
Description
Rogowski Coil are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current. A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided.
| 输入电流范围(AC) Current range(AC) | 200 | A |
| 测量电流范围 Measure range | 5% – 120% | % |
| 工频频率 Power frequency | 45-65 | Hz |
| 额定输出电流 Rated output current | 40mA | Aac |
| 负载（Load） | ≤20 | Ω |
| 电源电压 Supply voltage | 12V@≥0.5A | V |
| 功耗电流 Power Consumption | ＜100 | mA |
| 失调温漂 Offset drift | @ -25～+70℃ ≤±1 | mV/℃ |
| 精度 Accuracy | ≤1 | % |
| 线性度 Linearity | ≤1 | %FS |
| 响应时间 Response time | ≤20 | ms |
| 绝缘电压 Galvanic isolation | AC,1min 10 | KV |
| 绝缘阻抗 Isolation resistance | @ DC 500V 1000 | MΩ |
| 工作温度 (TA) Operating temperature | -25 to +55 | ℃ |
| 认证 Certificates | UL , CE ,Rohs |
