UL2808 XH-SCT-S24 200A 80mA Slim Split Core Current Transfomrer CT

Description

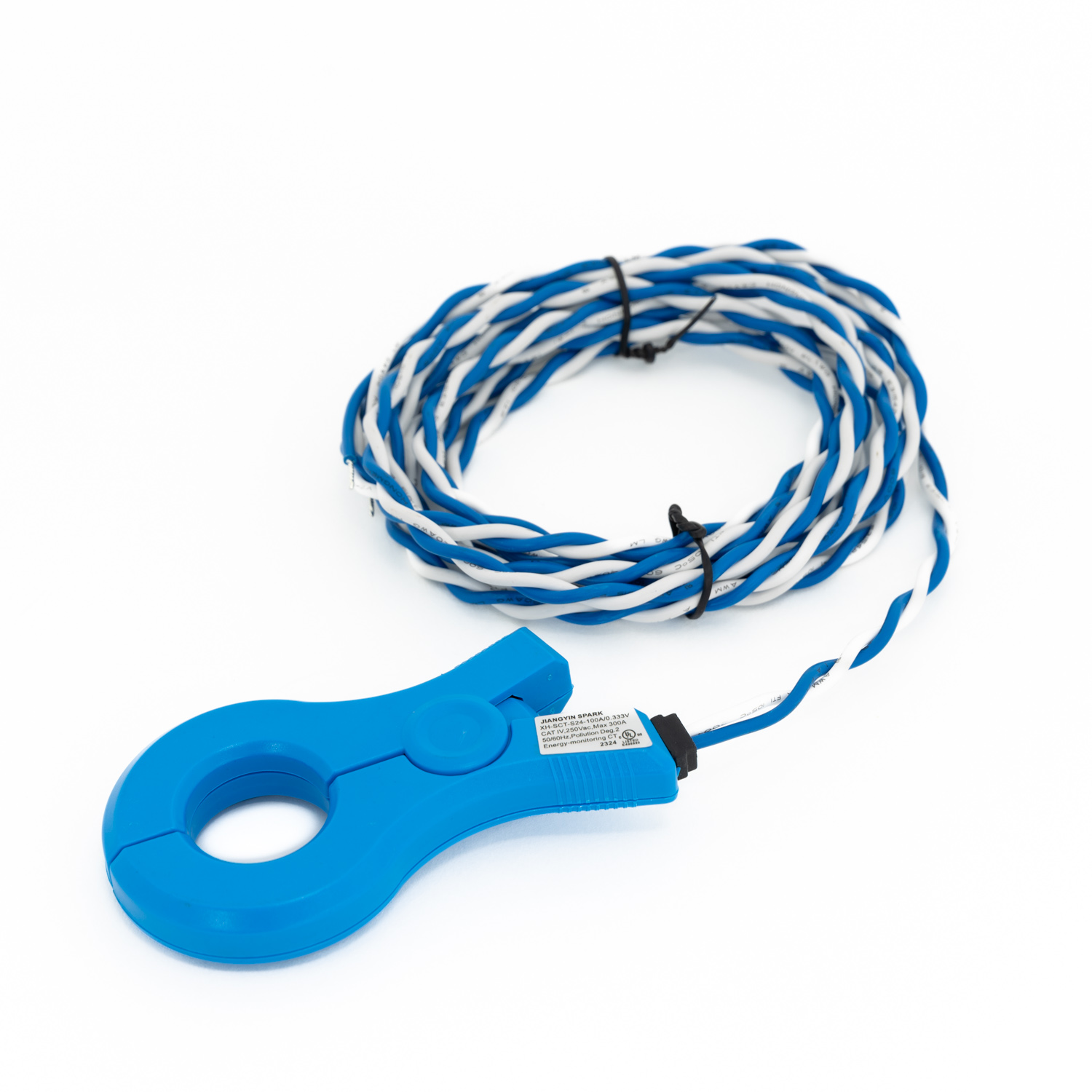

Jiangyin Spark XH-SCT-S24 Slim split core current transformer ,clamp on type , senses AC current from 50 to 300 Amps passing through the center conductor.Slim current transformer are Clamp and split core design ,can make installation with single hand .designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Smart Grid Application Features
Energy storage solutions,PV Inverters,PV monitoring
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC



Model	Input current(A)	Max cufrrent(A)	Output
XH-SCT-S24	0.2-300Aac	320Aac	mA/0.333Vac/0-3Vac



		XH-SCT-S24	UNITS
ELECTRICAL SPECIFICATION
Accuracy (1% – 100% of rated current)		±0.5	%
CT Phase Angle (5% – 120% of rated current)		0.5 (Ultracrystalline)  / 1.5± 0.5(Silicon iron)	Degrees
Nominal Line Frequency		60 / 50	Hz
Current Rating		0.2 to 300	A
Output Voltage		0 – 333	mVac
Overvoltage		AC 3000V/0.3mA/60S  (50HZ/60HZ)	Vac
Maximum Continuous Amps		300	A
MECHANICAL
Type		Split core, clamp design
Average Window Diameter		24	mm
Lead Wire	Type	Twisted pair	MTW,UL105
	Length	17 / 5.2	ft/m
	Gauge	20	AWG
Material		Polycarbonate
Weight		190	g
ENVIRONMENTAL
Operating Temperature Range		-40 to 60	°C
Operating Humidity		5% to 90% relative humidity
IP Rating		30 (NEMA 1)



Save valuable time and labor costs with our high-accuracy XH-SCT-S24 Slim Current Transformer (CT) that easily fits into the home’s Main Service Panel and eliminates the need to build a subpanel.

Faster Installs Means More Installs: Working seamlessly with consumption meters (external or built-in to Home Hub inverters) our CT features a spring clamp and slim split-core design enabling simpler one-handed connections.

Boost Customer Satisfaction: Providing homeowners with real-time insight into their energy usage helps them to avoid high bill blowback; that’s fewer service calls and more referrals for your business. Keep the revenue rolling by helping your customers understand when it’s time to add more solar or smart features like batteries, EV charging and smart energy devices.
