XH-SCT-T20 Split Core Current Transformer CTs
SPECIFICATIONS
1、Rated Voltage：0.66KV
2、Insulation Voltage：2KV
3、Rated Frequency：50HZ or 60HZ
4、Operating Temperature：-15℃ to 60℃
5、Flame resistance：UL94-V0
6、Certificates：CE、UL
Description
Jiangyin Spark XH-SCT-T20 Series split-core current transformer senses AC current from 0 to 200Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Product Parameters
| Model | Input（A） | Max currnet（A） | Turns（T） | Burden（Ω） | Output |
| XH-SCT-T20 | 0-200A | 200 | 3000 | 100 | 1A/0.333V/1V |

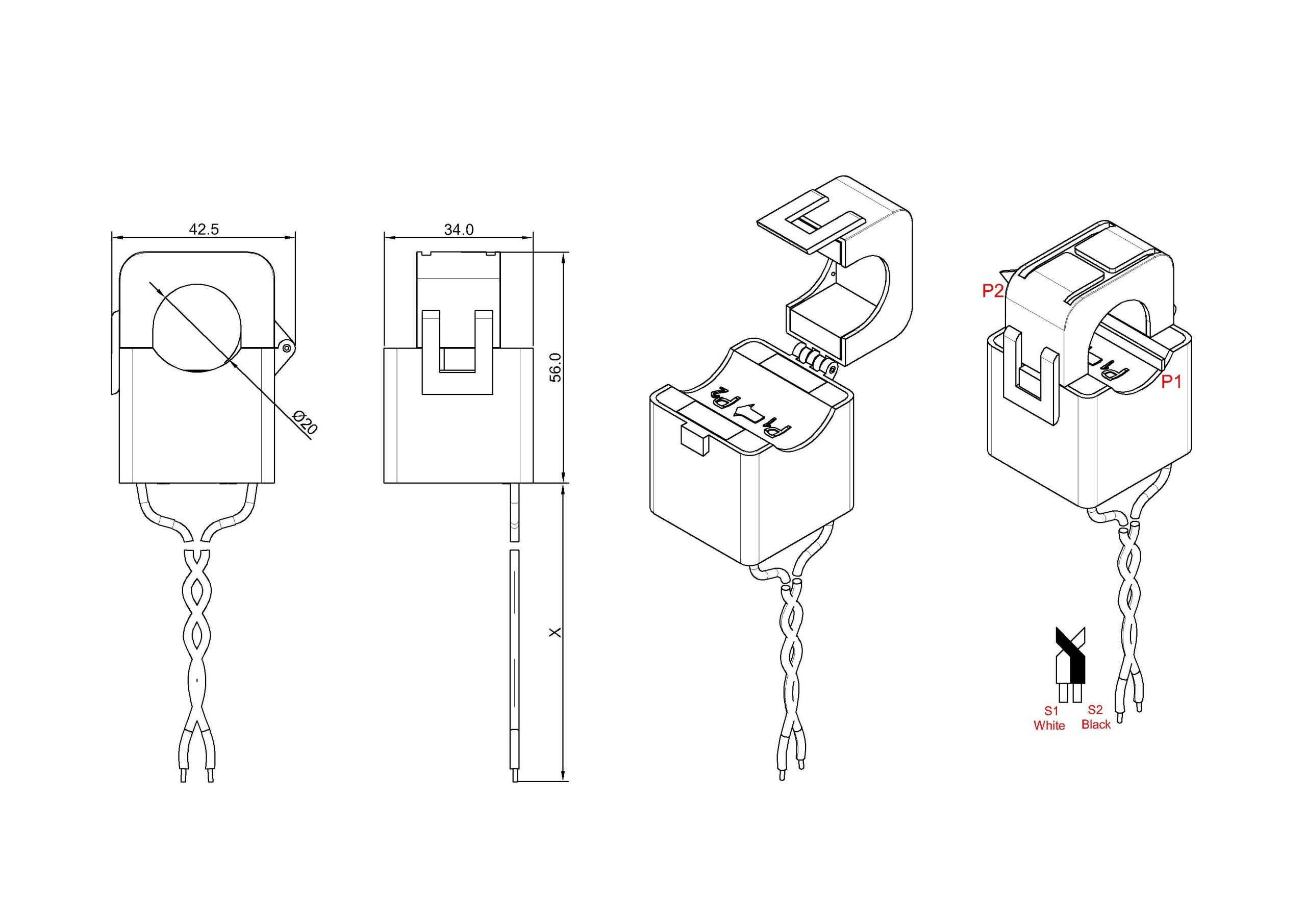

Details Images
| Model | I.D. | Ratio | Rated Amps | Accuracy |
| XH-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| XH-SCT-T16 | 16mm | 3000:1 | 50,70,100,120 | 0.5 , 1.0 |
| XH-SCT-T20 | 20mm | 3000:1 | 50,80,100,120,150,160,200 | 0.5 , 1.0 |
| XH-SCT-T24 | 24mm | 3000:1 | 100,150, 200,300 | 0.5 , 1.0 |
| XH-SCT-T25 | 25mm | 3000:1 | 100,150, 200,250 | 0.5 , 1.0 |
| XH-SCT-T36 | 36mm | 3000:1 | 300,400,500,600 | 0.5 , 1.0 |
| XH-SCT-T50 | 50mm | 3000:1 | 500,600,700,800,900,1000 | 0.5 , 1.0 |
| XH-SCT-T70 | 70mm | 3000:1 | 500,600,700,800,900,1000 | 0.5 , 1.0 |
