SunPower Solid-Core Current Transformer 534278 4M Compatible with PVS6

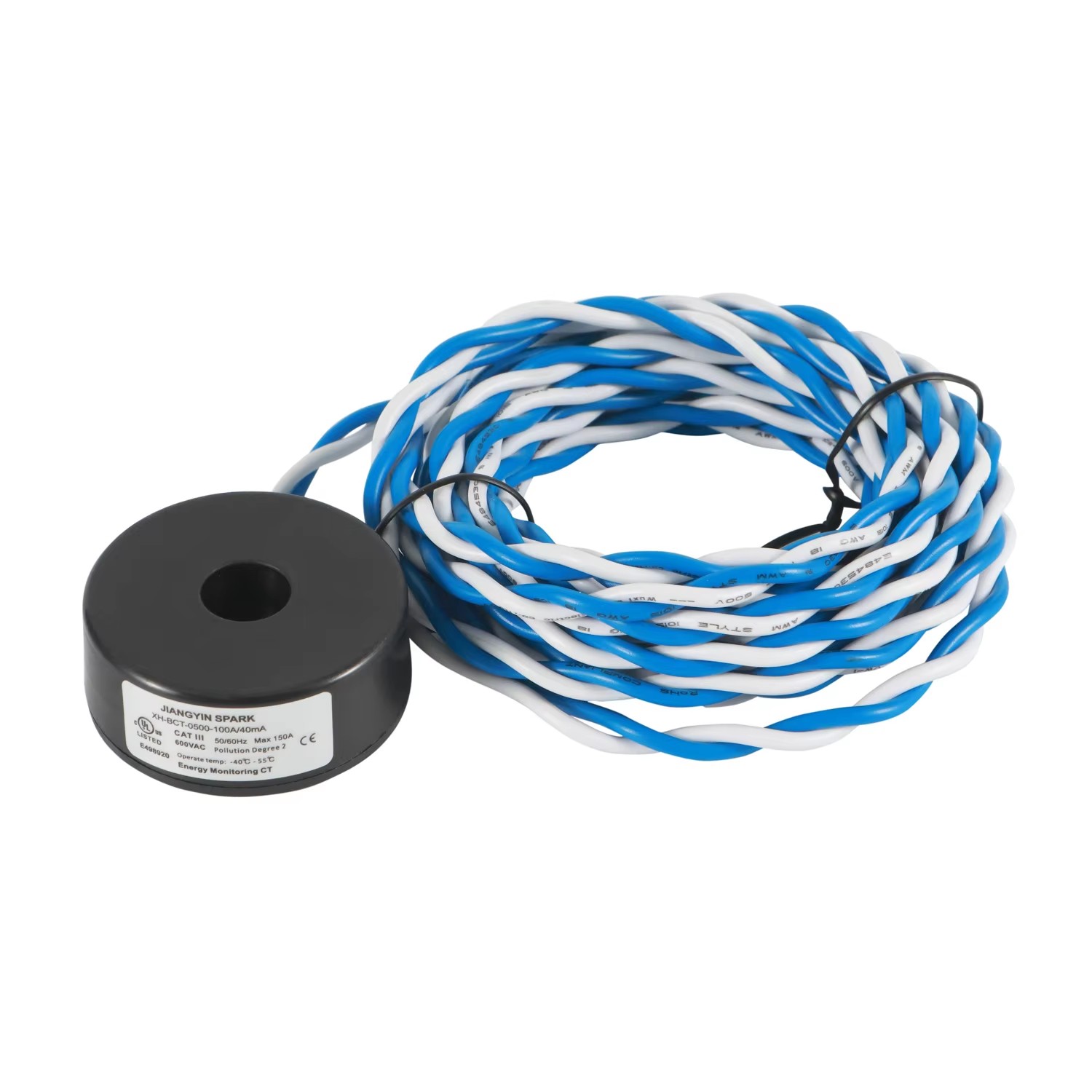

Jiangyin Spark XH-BCT-0500 Solid Core Current Transformer design for better accuracy for 0.333V output Solid core CTs are more accurately , small in size,If mA sendary output ,accuracy can be 0.1%
SPECIFICATIONS：
1、Rated Voltage：0.66KV
2、Insulation Voltage：3KV
3、Rated Frequency：50HZ or 60HZ
4、Operating Temperature：-15℃ to 60℃
5、Flame resistance：UL94-V0
6、Certificates：CE、UL2808
Specifications:
1. Rated input current from 0A to 100A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.UL2808 ,RoHS Compliant
8.Operating Temperature:-40ºC to +55ºC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes
| Model | I.D. | Rated Amps | Outside
Diameter |
Height |
| BCT-0300 | 0.76 cm | 5, 15, 30,50 | 4.32 cm | 1.91 cm |
| BCT-0500 | 1.27 cm | 15, 30, 50, 60, 100 | 4.83 cm | 1.91 cm |
| BCT-0750 | 1.91 cm | 30, 50, 70, 100, 200 | 5.33 cm | 1.91 cm |
| BCT-1000 | 2.54 cm | 50, 70, 100, 150, 200, 300 | 6.10 cm | 2.03 cm |
| BCT-1250 | 3.18 cm | 70, 100, 150, 200,300, 400, 600 | 6.86 cm | 2.03 cm |
